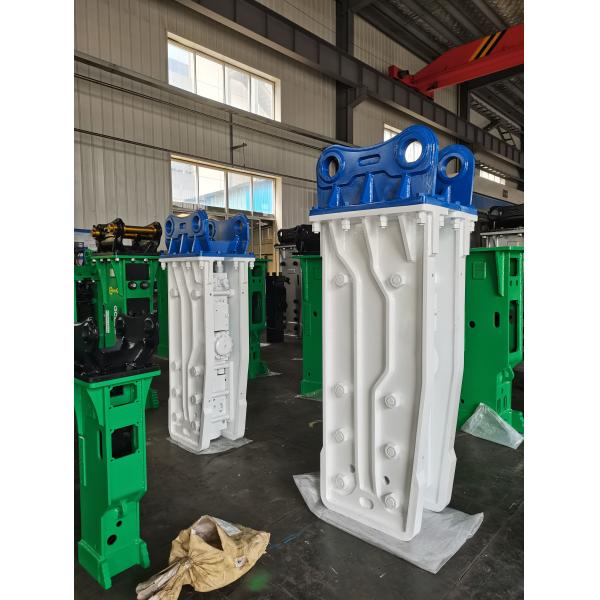

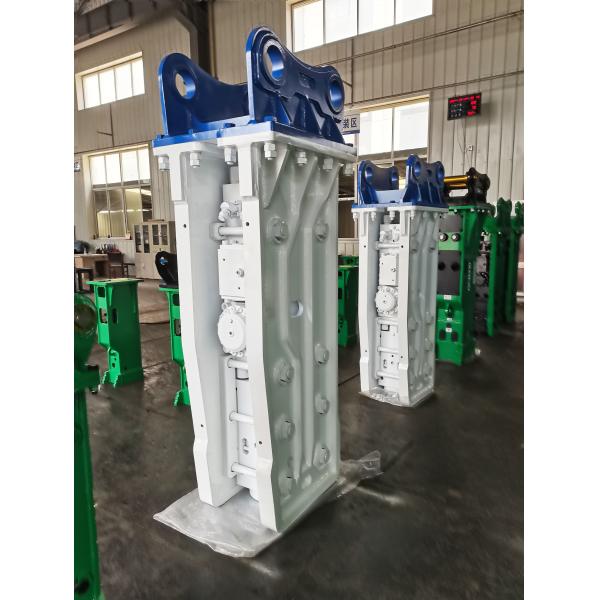

HB20G Jack Hammer Hydraulic Hammer Breaker Top Type For 18-25 Ton Excavators
Product Description
HB20G Hydraulic Hammer Breaker is a heavy-duty hydraulic breaker designed for 18-25ton excavators.Its core components include a chisel head with a diameter of 135 mm, which can provide strong crushing force to meet various heavy-duty construction needs.
Parameter
| Model (Small range) | | | | | |
| Applicable weight | tons | | | | | |
| Working weight | kg | | | | | |
| Impact rate | bpm | | | | | |
| Operating pressure | bar | | | | | |
| Chisel diameter | mm | | | | | |
| Model | | | | | |
| Applicable weight | tons | | | | | |
| Working weight | kg | | | | | |
| Impact rate | bpm | | | | | |
| Operating pressure | bar | | | | | |
| Chisel diameter | mm | | | | | |
| Model (Medium range) | | | | | |
| Applicable weight | tons | | | | | |
| Working weight | kg | | | | | |
| Impact rate | bpm | | | | | |
| Operating pressure | bar | | | | | |
| Chisel diameter | mm | | | | | |
| Model (Large range) | | | | | |
| Applicable weight | tons | | | | | |
| Working weight | kg | | | | | |
| Impact rate | bpm | | | | | |
| Operating pressure | bar | | | | | |
| Chisel diameter | mm | | | | | |
Application fields
HB20G hydraulic breaker is widely used in the following fields:
- Mining: mining, rock crushing.
- Construction and infrastructure: demolition of concrete structures, demolition of old buildings.
- Road and bridge engineering: repair, crushing of cement pavement, foundation excavation.
- Municipal engineering: urban transformation, concrete crushing, hydropower engineering.
- Railway engineering: tunnel excavation, bridge demolition.
- Others: ice breaking, frozen soil crushing.
Advantages
- High-efficiency crushing capacity: HB20G adopts high impact frequency (400-800 times/minute) and strong impact energy, which can quickly crush hard materials.
- Durability: Made of high-strength wear-resistant materials, it has a long service life and low maintenance cost.
- Low noise design: open top design, lower noise, suitable for cities and noise-sensitive areas.
- Strong compatibility: suitable for 18-25 ton excavators of various brands, easy to install.
- Convenient maintenance: open structure facilitates maintenance and replacement of parts.
- Long-life chisel head: made of high-quality 42CrMo material, the service life is 2-3 times that of ordinary chisel heads.
HB20G hydraulic breaker is an ideal supporting tool for 20-ton excavators with its high efficiency, durability and low noise, suitable for a variety of heavy-duty construction scenarios.
How to choose suitable chisel:
Product Structure
Four bolts which connect the back head cylinder & front head.
The main function is to store nitrogen.
Control the piston to move up and down at specified frequency.
Here is the heart of the breaker, including the hydaulic circulation system to control the piston reciprocation.
Transform the hydaraulic power into strike power,punch the chicel to break.
The function is to support the cylinder and fix the chicel,to avoid the shaking force break the cylinder when operating.
Chisel is specially strengthened for wearing
Our innovations
we can supply full hydraulic breakers of MB1500 and MSB250 foryears.
Currently we are developing new types hydraulicbreakers and will come out in 2024.
OEM & ODM
We offer our brand of hydraulic breakers in addition to these, we also support OEM and ODM service.
OUR TEAM
Team we have 4 girls to run and we can communicate fluently in English/Japanese/Mexico
WARRANTY
12-18 months on all our hydraulic breakers and 6 months on spare parts
OUR COMMITMENT
We will be your reliable partner in the construction machinery industry.
Our Service
1.Provide custom design service for client
2. Design and manufacture according to special requirement of client
3. Provide personnel technical traning for clients
1.Provide best forwarder option in cheap shipping seacost ahead of loading
2. Provide material/heat treatment/inspection report before loading
1.Assist clients to prepare for the construction scheme
2.Provide install and debug equipment online service
3.Provide traning for front-line workers from clients
OEM&ODM
We supply our GOOCHANCE brand hydraulic breakers, besides these, we also support OEM & ODM service
Warranty
All our hydraulic breakers 12-18 months and spare parts 6 months.
Our Team
We have 4 girls to run and we can communicate in English/Japanese/Mexico smoothly.
Our promise
We will be your reliable partner in construction machinery industry.
FAQ
Q:Are you a manufacturer ?
A: Yes, our factory was established in 2010
Q: Are you sure your product will fit my excavator?
A. Our hydraulic breakers are suitable for most excavator. Show us your excavator model, we'l confirm the solution.
Q:How about your products warranty?
A: 12 months warranty for hydraulic breakers and 6 months for spare parts
Q: Can you produce according to customer's design?
A.Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.
Q: What's the MoQ and payment terms?
A: MOQ of hydraulic breaker is 1 set. Payment via T/T, Western Union accepted, our terms can be negotiated.
Q: How about delivery term ?
A: 5-25 working days after payment
Q: How about the package?
A: Our hydraulic breakers wrapped by stretch film, packed by pallet or polywood case, or as requested
Q:Which country have you exported?
A: Saudi Arabia, Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc
